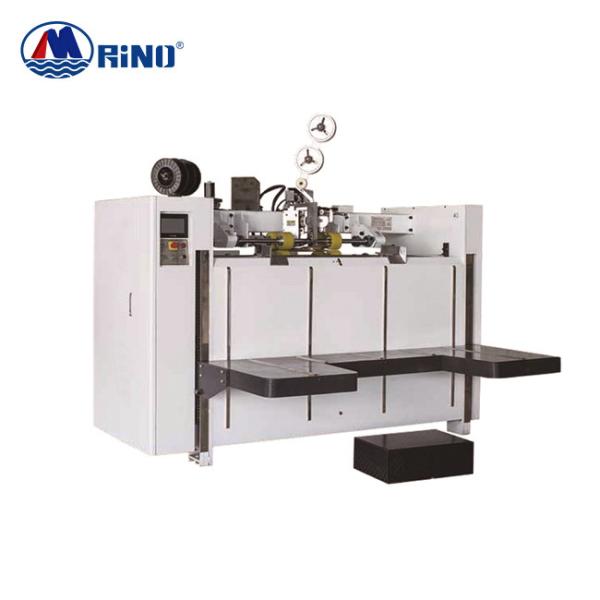

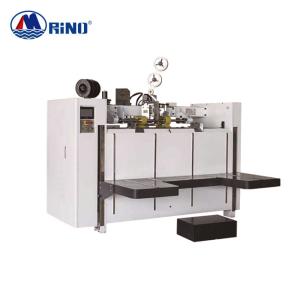

Semi Auto Carton Box Stitching Machine

Name: Semi Auto Carton Box Stitching Machine
Brand: RINO
Price: 1 USD

China Semi Auto Carton Box Stitching Machine wholesale

Brand Name : RINO

Model Number : HRT-2800

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 20 Set/Month

Delivery Time : 40-60 Working Days After Deposit

Packaging Details : Wrapped with film or in wooden case

Maximum pardboard Size : 2800*1500mm

Minimum pardboard Size : 660*330mm

Nail Distance : 30-120mm

Maximum Speed : 600 Nails/min

Name : Semi-Auto Single Piece Carton Stitching Machine Cardboard Box Forming Machine

Power : 6HP

Nail wire model : #17、#18

Number of nails : 1-99

Contact Now

Semi-Auto Single Piece Carton Stitching Machine Cardboard Box Forming Machine

Introduction of Cardboard Box Stitching Machine

1. Dual-servo-drive imported from Yaskawa, Japan, High precision, Low fault rate while reducing the mechanical transmission part.
2. Touch screen operation, Conveniently adjustment like nail distance, nail number, nail types & tail gate.
3. The whole control system is Omron PLC control system.
4. The back electric block board is stepper motor-driven which has high precision, and is quick and convenient in adjustment.
5. The contactor in the control box is Siemens brand.
6. The photoelectric and proximity switches are Schneider brand.
7. The under mold and blades are made of tungsten steel made in Japan (wearable)
8. The whole nail heads are made of special steel, precision making.
9. Suitable for single nail, Dual nail, strengthen nails, Dual nail on both sides and single nail in the middle ). Completed at one time. Meet the request of different customer requirements.

Cardboard Box Stitching Machine Parameter

Model	HRT-2800
MAX.pardboard Size	2800*1500mm
MIN .pardboard Size	660*330mm
Nail Distance	30-120mm
Speed	600 nails / min
Total Power	6HP
Nail Wire	#17,#18
Paper Stacking Height	900MM
Weight	2500KGS

Accessory List

NO	NAME	NO.	BRAND
1	Touch screen	1	WEINVIEW,TAIWAN
2	SERVO MOTOR	2	MITSUBISHI,JAPAN
3	PLC		OMRON,JAPAN
4	MOTOR	1	LIMING,TAIWAN
5	BLADE	1	Japanese Tungsten Steel
6	STITCHING HEAD	1	Imported from Taiwan, Italian technology
7	PHOTOELECTRIC SENSOR	2	OMRON,JAPAN
8	BREAKER		Schneider
9	BUTTON		Schneider
10	Wire Feeder	1	SHANGHAI
11	WALLBOARD	1	THICKNESS12mm
12	BEARINGS	1	C&U

Operation instruction of semi-automatic stitching ...
