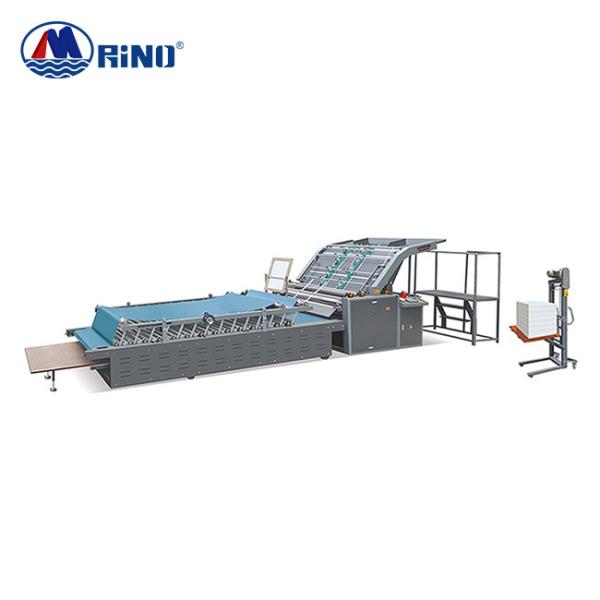

6kw Paper Flute Laminating Machine Semi Automatic For Corrugated Cardboard

Name: 6kw Paper Flute Laminating Machine Semi Automatic For Corrugated Cardboard
Brand: RINO
Price: 1 USD

China 6kw Paper Flute Laminating Machine Semi Automatic For Corrugated Cardboard wholesale

Brand Name : RINO

Model Number : HF-S1400

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 50 Set/Month

Delivery Time : 40-60 Working Days After Deposit

Packaging Details : Wrapped with film or in wooden case

Maximum size : 1400×1250mm

Minimum size : 360×360mm

Laminate precision : ±1mm

Speed : 80pcs/min

Total power : 6kw

Overall dimension : 8.8×2.05×1.5m

Total weight : 3000kg

Voltage : 220V/380V

Name : Semi Automatic Paper Flute Laminating Machine For Corrugated Cardboard

Contact Now

Semi Automatic Paper Flute Laminating Machine For Corrugated Cardboard

Performance of Flute Laminating Machine

1. Adopt the bottom paper push the rules walk paper of way, insure the fixed position more accurate.

2. The adoption imports the electric appliances component, safe credibility.

3. Adopt the bottom paper absorbs the breeze leather belt to transport, succeeding to solve the corrugated arch hard nut to crack.

4. Apply to face the paper gram heavy>200gs/m2, the bottom paper>250gs/m2, the ABCEF corrugated paper and carton.

Parameter of Flute Laminating Machine

Model	HF-S1300	HF-S1400	HF-S1500	HF-S1600
Maximum size	1300×1100mm	1400×1250mm	1500×1250mm	1600×1250mm
Minimum size	360×360mm	360×360mm	360×360mm	360×360mm
Laminate precision	±1mm	±1mm	±1mm	±1mm
Speed	80/min	80/min	80/min	80/min
Total power	6kw	6kw	6.5kw	6.5kw
Overall dimension	8.8×1.95×1.5m	8.8×2.05×1.5m	8.8×2.15×1.5m	8.8×2.25×1.5m
Total weight	3t	3t	3.5t	3.5t

Main Units

6kw Paper Flute Laminating Machine Semi Automatic For Corrugated Cardboard

Gluing unit

The gluing roller is stainless steel anilox roller. The coating is uniform and the operation is stable. About 25-35 grams of glue per square meter, the amount of glue used is reduced by 50% .

Electrical unit

Most of our electrical components are imported from Japan, France, Germany and other developed countries, which can ensure machine quality and extend the service life.
